그레이팅
SUS GRATING 1

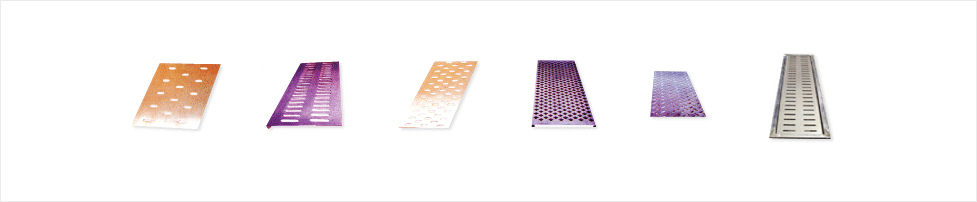

제품사진

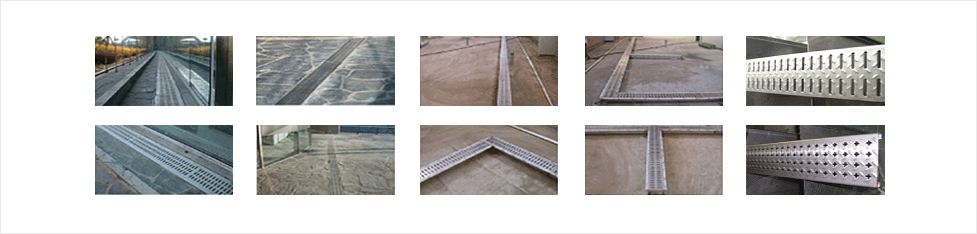

시공사진

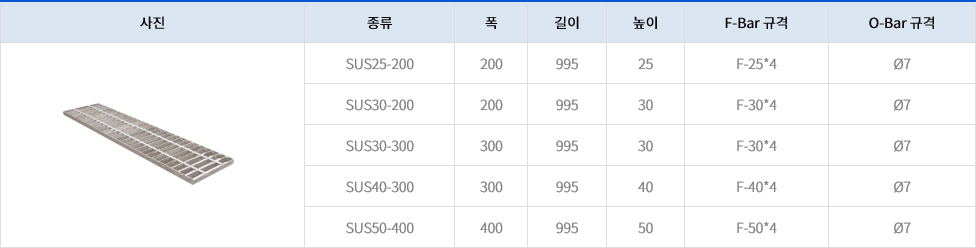

규격
| 150 * 1000 * 20 * 1.5 | 150 * 1000 * 20 * 2 | 150 * 1000 * 20 * 3 | 200 * 1000 * 20 * 2 |
| 200 * 1000 * 20 * 3 | 300 * 1000 * 20 * 3 | 300 * 1000 * 20 * 4 |

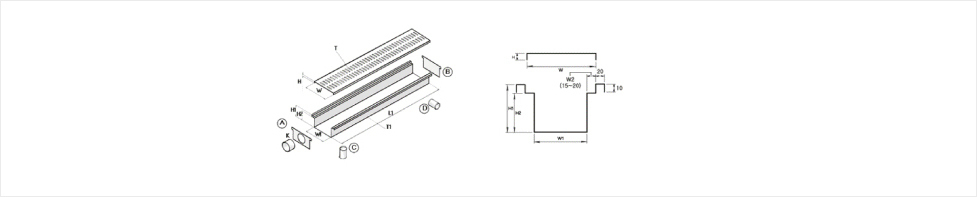

설계도
SUS GRATING 2
FACTOR OF DESIGN
| Class | Span | Rear Wheel Load | Contact Area | Impact Factor | Allowable Stress |
| Transverse(t) | Width of trench | 500kg | 20 * 15cm | 0.4 | 18.0kg / ㎟ |
| Side(s) | 500kg | 20 * 15cm | 18.0kg / ㎟ |
| Type | Span | Cross bar |
| BLI 204F | FB 20 * 4 | Ø8 |
| BLI 204F | FB 25 * 4 | Ø8 |
| BLI 204F | FB 30 * 4 | Ø8 |
| BLI 204F | FB 32 * 4 | Ø8 |

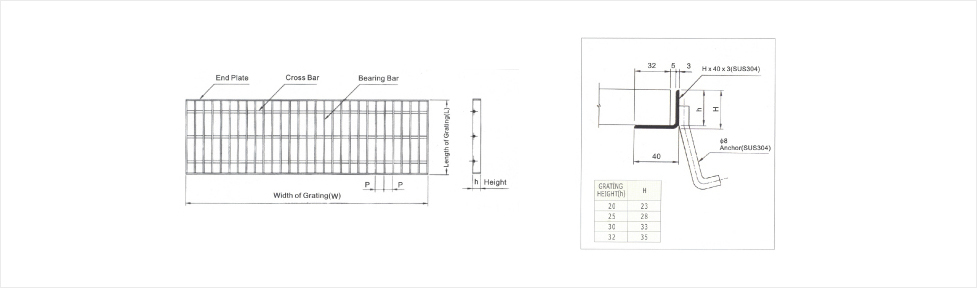

설계도

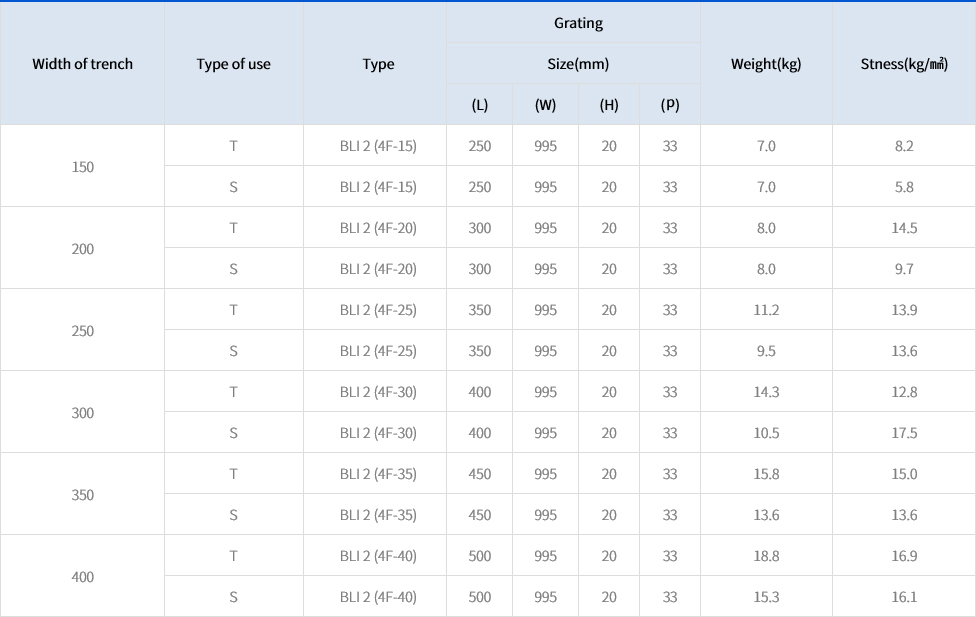

STANDARD SIZE WEIGHT (PASSENGER CAR)
